Panasonic KV-S5076H Scanner
Features
|
Introducing a whole new way to scan. With on-board CPU image
processing, the new
Panasonic KV-S5076H scanner radically outpaces the competition.
Instead of a slow
software interface, the scanner’s on-board processor does the heavy
lifting.
Hardware image processing on the KV-S5076H allows you to scan a
document and sample
different scan settings without rescanning the original over and
over. Until you output your
document as a file, the original document data is temporarily stored
in memory. This allows
you to manipulate a scan without the time and frustration of
rescanning.
The KV-S5076H Series scans up to 11"x17" wide sheets
of paper
The scanner has a 25,000 page per day rating for their Daily Duty
Cycle
|
Standard Features |
- High Speed Full Color Scanning
- Black & White, Grayscale Scanning
- Duplex and Simplex scanning modes
- Thin Paper Scanning Mode
- Long Paper Scanning Mode
- Mixed Document Mode
|
- 300 Page Auto Feeder
- Ultrasonic Double Feed detection
- Blank page detect
- Bar code detection (ISIS Driver)
- Searchable PDF, PDF & PDF/A
- JPG,TIFF, & BMP output
|
Advanced Features |
Stapled Document Detection
Multiple sensors are used to detect various types of stapled
documents, and to immediately stop the scanner when stapling is
detected. This minimizes damage to both the document and the optical
glass. (Feature not available on the KV-S5046H) |

|
Mechanical Deskew |
Physical paper skewing is reduced by the integrated Mechanical Deskew system.
Even when skewed documents are fed into the scanner, the Mechanical Deskew system physically
adjusts the paper before the paper is scanned by the CIS (Contact Image Sensor).*
*There is a limit to the skewing correction. Skewing reduction is effective for documents that are skewed up to approximately 5 degrees.
* only available on the KV-S5076H
|
 |
Automatic Image Orientation
|
Even when documents are set in different directions, this function detects the
direction of the scanned text and automatically rotates the document into the correct direction.
This boosts work efficiency by eliminating the need to change the direction of each page in advance
when scanning large quantities of documents with various sizes and directions.
|
Paper Ejection Control |
The paper exit roller reduces the speed of the
paper being ejected and aligns the paper to prevent paper jams or
the loss of originals. Different length documents no longer come
flying out of control into the exit tray. Each document exits at the
same speed. In addition, the scanner exit tray has adjustable "slide
panels" to align the exit documents together after they are scanned.
|
Mixed Size Document Feeding
|
The ability to handle "Mixed Size Document Feeding" is an essential feature for any situation
in which the scanner user may encounter the need to scan a multitude of different sized documents.
This helps save time by feeding documents of varied sizes at the same time, from business cards to the
maximum document size, without the hassle of having to continuously stop the scanning process to adjust settings or guiderails.
|
 |

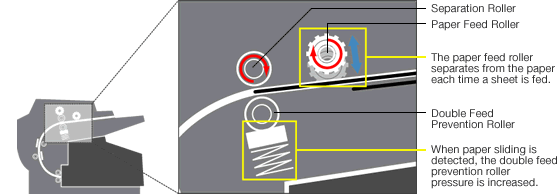

Superior Roller Mechanisms
|
The paper feed rollers separate from the paper each time a sheet is fed,
so the tendency to double-feed caused by the paper feed roller pressure is reduced,
even when feeding paper of different thicknesses. Any paper sliding is also detected
and the double feed prevention roller pressure is adjusted to prevent the paper from slipping and jamming.
|
 |
|
Self Cleaning Functions - The Ionizer
|
The ion-filled breeze created by the ionizer neutralizes the electrical charge on the documents
to be scanned, and reduces the amount of paper dust that clings to their surface. This ion-filled breeze also flows
through the paper path and removes paper dust from the scanning glass to reduce the need for the user to clean the glass.
* only available on the KV-S5076H
|
 |

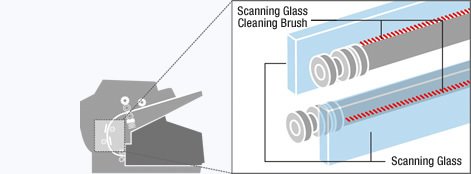

Scanning Glass Cleaning Brush |
The brush directly cleans the scanning glass to further
prevent paper dust. This eliminates the need for maintenance
and ensures comfortable scanning operations.

|
Easy User
Maintenance
|
Panasonic scanners are designed with the comfort and ease of use of
the scanner user in mind. The clamshell design allows for full, easy
access to the main paper path for Easy User Maintenance. This allows
scanner users to effortlessly clear the occasional paper jam, clean
the unit or replace the rollers without having to call a service
technician |

|
Auto Erasure Security |
Scanning situations requiring the highest levels of security are
benefitted by Auto Erasure Security. Scanners featuring this high
security technology automatically erase all data from the scanner's
built-in memory. This feature helps secure against data leaks and
aids in preventing hardware hacking. |
 |
Imprinter Options Available |
With the "Imprinter Option", this separately sold
scanner accessory can be mounted to the scanner and used to print a
string of characters on documents. The imprinter is beneficial in
helping to raise filing efficiency and reliability, as well as
ensuring that documents are processed correctly post scanning.
|
What's a Pre-imprinter ?
The pre-imprinter prints text on the surface of a
document before its image is scanned so the text data is
included in the scanned image data.
"CASE#: ABC-1234" |
What's a post-imprinter ?
The post-imprinter prints text on the back side of a
document after its image is scanned so the text data is NOT included
in the scanned image data "scanned 1-1-2013" |
 |

*Post imprinter not available on the KV-S5076H |
Other Functions INCLUDED
Barcode Detection (ISIS only), Patch Code Detection, Automatic
document separation, and Control sheet functions are included with
the scanner. |
Image Capture Plus Software v1.3
Bundled standard with all Panasonic Scanners, the Panasonic Image
Capture Plus Software is your ultimate capture solution. Featuring a
wealth of image processing functionality, it ensures that you have
the tools necessary to handle virtually any scanning requirement.
Features of the Panasonic Image Capture Plus software include:
Automatic Brightness Adjustment, Automatic Image Emphasis, Zonal
OCR, Automatic Binary/Color Distinction, Double Exposure, Blank Page
Removal, Automatic Crop, Automatic Deskew, MultiStream, Dynamic
Threshold, Multi-Color Dropout, Hole Removal, Background Smoothing,
2-Page Separation, Multi-Crop, and more. |
Kofax® VRS Elite Workgroup Software
For environments where the Kofax® Virtual Rescan Elite Software
is required, Panasonic also offers the Panasonic KV-S5076H scanner
bundled with the Kofax® VRS software. Panasonic scanners that
include the VRS software bundle are designated with a (-V) at the
end of the model number. The Kofax® VRS Elite software provides a
variety of advanced scanner applications such as: Device Health
Monitor, Centralized Licensing, Profiles and Customizable User
Interface, and more. |
3-Year Advance Exchange Warranty
Panasonic provides a "3-Year Advance Exchange Warranty" standard
with the purchase of the Panasonic KV-S5076H model. This provides, in most
cases, next business day scanner replacement for problems that
cannot be remedied by our technical support hotline.
|
