Kodak s20X0 Series Specifications

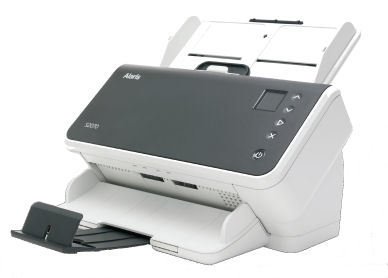

s2050 scanner
Recommended use case
Great for general office and entry-level content management applications that can benefit from Smart Touch functionality.
Recommended Daily VolumeUp to 6,000 pages per day
Automatic Document FeederUp to 80 sheets of (20 lb.) paper
Handles small documents such as ID cards, embossed hard cards, business and insurance cards
s2070 scanner
Recommended use caseIdeal for higher volume content management workflow applications that require optimized batch management, indexing, and optical character recognition
Recommended Daily VolumeUp to 10,000 pages per day
Automatic Document FeederUp to 80 sheets of (20 lb.) paper
Handles small documents such as ID cards, embossed hard cards, business and insurance cards
Throughput Speeds*
(portrait, letter size)
Bitonal/grayscale/color @ 200 OR 300 dpi
- S2040: 40 ppm/80 ipm
- S2050: 50 ppm/100 ipm
- S2070: 70 ppm/140 ipm
- S2060w: 60 ppm/120 ipm
- S2080w: 80 ppm/160 ipm
Scanning Technology
Dual CIS;
Grayscale bit depth is 256 levels (8-bit)
Color capture bit depth is 30 bits (10 x 3);
Color output bit depth is 24 bits (8 x 3)
OnBoard Processors
S2050
Embedded Single Core Cortex A15 Processor (1.5GHz) with single DSP (750 MHz) Image Processors, with Multiple Cortex M4 Sub-processors
S2060W, S2070 & S2080w
Embedded Dual Core Cortex A15 Processors (1.5GHz) with Dual DSP (750 MHz) Image Processors with Multiple Cortex M4 Sub-processors
Operator Control Panel
S2050/S2070:1.5-inch color LCD
S2060w & S2080w:
3.5-inch/89 mm color touch screen LCD
Optical Resolution
600 dpi
Illumination
Dual indirect LED (light emitting diode)
Imaging Backgrounds
Front white imaging background accessory included
(customer replaceable)
Output Resolution
75, 100, 150, 200, 240, 300, 400, 600 dpi*
Maximum Document Size
8.5 in. x 118 in.
Minimum Document Size
2.0 in. x 2.0 in.
Paper Thickness and Weight
27-433 g/m² (7.2 lb. bond paper - 160 lb. cover stock)
ID card thickness: up to 1.25 mm (0.05 in.)
Consumables available
Feed module, separation module, feed rollers, roller cleaning pads, Staticide Wipes
Multi-feed Detection
With ultrasonic technology
Intelligent Document Protection
Connectivity
USB 3.1 GEN1 (Compatible with USB 2.0 and 3.0)
Bundled Software
WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Kodak Smart Touch Software.(Capture Pro Limited Edition available via download)
Imaging Features
Barcode reading (10 types, up to 6 per side); Perfect Page scanning; Deskew; Autocrop; Fixed cropping; Relative cropping; Multi-lingual auto orientation; Orthogonal rotation; Add border; Remove border; Intelligent image edge fill; Round/Rectangular Hole Fill; Content or file size-based blank page removal; Sharpening; Streak Filtering; Automatic brightness/contrast; Background color smoothing; Automatic color balance; Auto white balance; Enhanced color adjustment; Enhanced color management; Automatic color detection; Adaptive threshold processing; Fixed thresholding; iThresholding; Lone pixel noise removal; Majority rule noise removal; Halftone removal; Electronic color dropout (R, G, B); Predominate (1) color dropout; Multiple (up to five) color dropout; All color dropout; Dual stream; Compression (Group 4, JPEG); Image merge; Long document scanning (up to 4,064 mm/160 in.)
File Format Outputs
Single and multi-page TIFF, JPEG, RTF, BMP, PDF, searchable PDF, TXT, PNG, CSV, Word and Excel
Warranty
(US and Canada)
Five year warranty
Accessories
A3, A4 size flatbed, Capture Pro Software- Pro version.
Electrical Requirements
100-240 V (International); 50-60 Hz
Power Consumption
Off: less than 0.5 watts; Sleep mode: less than 3.0 watts; Running: less than 36 watts
Environmental Factors
EPEAT Registered ENERGY STAR Qualified Operating Temperature: 10-35° C (50-95° F) Operating Humidity: 15% to 80% RH
Acoustical Noise
Off or Ready mode: Less than 20 dB(A)
Scanning: Less than 50dB(A)
Recommended PC Configuration
Minimum PC configuration with scanning application:
Intel Core i3 processor or faster, at least 4 GB RAM (Microsoft Windows)
Supported Operating Systems
WINDOWS 10 (32/64-bit), WINDOWS 11 (64-bit), WINDOWS Server 2012, 2016, 2019, 2022, LINUX.
Dimensions
Weight: 7.2 lbs.
Depth: 8 inches not including trays
Width 12.3 inches
Height: 7.2 inches not including trays
* Throughput speeds may vary depending on your choice of driver, application software, operating system and PC.
