Kodak S3140 Max scanner
Specifications
Throughput Speeds
(landscape, letter size,color or B-W)
S3120 Max: Up to 120 ppm/240 ipm at 300 dpi
S3140 Max: Up to 140 ppm/280 ipm at 300 dpi
Scanning Technology
Dual RGB LED Illumination CIS (CMOS); Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3)
Illumination
Dual RGB LED (light emitting diode)
Operator Control Panel
Color 3.5 inch Graphical LCD Display with four operator control buttons
Feeder/Elevator
Up to 500 sheets of 20 lb. paper
Optical Resolution
600 dpi
Output Resolution
75, 100, 150, 200, 240, 300, 400, 600 and 1200 dpi

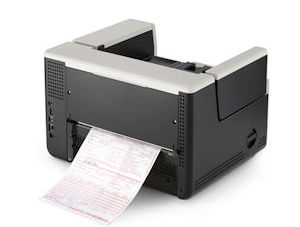

Paper Path Options
Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected
Max/Min Document Size
(auto feed mode)
12 in. x 160 in / 2.5 in. x 2.8 in.
Long Document Mode
up to 12.0" x 160" continuous feed.
Paper Thickness and Weight
9.0-160 lb. paper
Consumables available
Feeder consumable kits, Carrier sheets,
Enhanced Imprinter, A3 Flatbed Accessory, Rear Exit Tray, Document Extender
Multi-feed Detection
With ultrasonic technology
Connectivity
USB 3.2 Gen 1x1 Compatible
10/100/1000 ETHERNET
Bundled Software
Kodak Capture Pro Limited Edition Software; Smart Touch; (TWAIN, ISIS, WIA Drivers and LINUX SANE drivers available from download.)
Citrix and Kofax Certified
Imaging Features
Perfect Page Scanning; iThresholding; adaptive threshold processing; deskew; aggressive crop; relative cropping; electronic color dropout; dual stream scanning; enhanced color management; enhanced color adjustment; brightness and contrast adjustment; automatic orientation; automatic color detection; background color smoothing; intelligent image edge fill; image merge; content-based blank page detection; streak filtering; round/rectangular hole fill; sharpness filter; auto brightness;toggle patch;auto photo cropping; segmented bitonal images; long document scanning (up to 160 in.)
File Format Outputs
Single and multi-page TIFF, JPEG, RTF, BMP, PNG, PDF, searchable PDF
Network Protocols
DHCP or Static IP
TCP/IP
Electrical Requirements
100-240 V (International); 50-60 Hz
Power Consumption
Sleep mode: <4 Watts; Running: <50 Watts
Environmental Factors
Energy Star qualified scanners
Operating temperature: 15-35° C (59-95° F)
Operating humidity: 15% to 80% RH
Recommended PC Configuration
Intel Core i7, 3.4 GHz processor or higher, 4 GB RAM or higher, USB 2.0 (Windows and Linux)
Supported Operating Systems
Windows 8/10/11 (32-bit and 64-bit), Windows Server 2012/16/19/22 (x64), UBUNTU 18/20, SUSE
Acoustical Noise
Off or Ready mode: <40 dB(A)
Operating mode: <60 dB(A)
Dimensions
Weight: 36 lbs.
Depth: 14.6 inches (tray closed)
Width 18 inches
Height: 11.6 inches
Warranty
90 day On Site Next Business Day.
