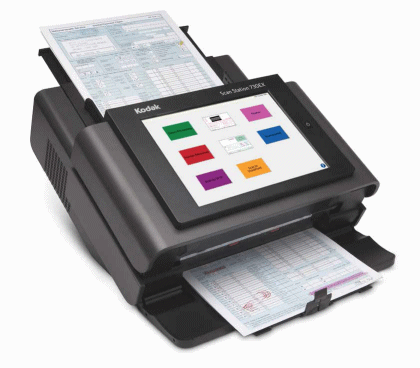

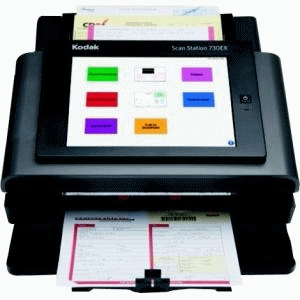

Scan Station 730EX Plus
Specifications
Connectivity
10/100/1000 Base T, no host PC required
Output Methods
- Scan to network share
- Scan to print
- Scan to e-mail
- Scan to portable USB drive
- Scan to FTP, sFTP, FTPS (anonymous, authenticated, with proxy support)
- Scan to Microsoft SharePoint (local)
- Scan to fax server
- Scan to fax modem
- Scan to Kofax Front Office Server
Network Protocols
- FTP, HTTP, WINS,TCP/IP,SMB (3.0)
- authenticated SMTP (login, plain text, CRAM, NTLM,
- DHCP (or static IP),
- Network Domain Authentication
File Format Outputs
- Single and multipage TIFF
- JPEG
- PDF
- Text searchable PDF
- Encrypted PDF
- Microsoft Word
- Microsoft Excel
- RTF
- Optional JPEG compressed TIFF
- WAV audio files
Security Features
- PDF Private Key Encryption
- Optional password access
- Controllable ability to scan to portable USB
- Secure login via LDAP
- Activity logging by Login ID
- IP Port Blocking
Remote Administration
(Sys admin only)
- Secure login with a customizable password
- ability to create and manage lists of Scan Station 730ex Plus devices
- group and easily classify managed devices
- update the configuration and/or embedded software of one, some or all managed devices
- view the status of managed devices
- remotely access and manage the logs of a single managed device
- restart or power on a single managed device
Control Panel
9.7 in. 1024x768
Touch screen LCD
Audio
Built-in microphone and speaker to record and play back Voice Attachment messages
Multifeed Detection
With ultrasonic technology
Scanning Technology
- Duplex scanning with dual color quad-linear CCD
- 600 dpi optical resolution
- Capture bit depth is 30 bits (10 x 3)
- Color output bit depth is 24 bits (8 x 3)
- Grayscale output bit depth is 256 levels (8-bit)
Illumination
Dual Fluorescent (cold cathode)
Output Resolution
75, 100, 150, 200, 240, 300, 400 and 600 dpi
1200 dpi with flatbed accessory
Imaging Features
Perfect Page Scanning, deskew, autocrop, content-based blank page removal, automatic orientation, hole fill, edge fill, streak filter, color dropout.
Throughput Speeds
Black-and-white/grayscale/color: up to 70 ppm/140 ipm at 200 dpi
Feeder
Up to 75 sheets of 75 g/m2 (20 lb.) paper.
Max. Document Size
(8.5 x 34 in.) – may be restricted at certain resolutions
Min. Document Size
Single-sheet feeding:( 2.0 x 2.5 in.)
Multiple-sheet feeding:
Multi-sheet feeding: 3 x 5 inches
Paper Thickness and Weight
52-413 g/m² (110 lb.) paper
ID cards up to 1.25 mm (0.05 in.) thick
Recommended Daily Volume
Up to 6,000 pages per day
Power Consumption
Standby: <4 Watts; Operating: <50 Watts
Environmental Factors
Operating temperature: 10-35° C (50-95° F);
Operating humidity: 10% to 85% RH
Dimensions
- Weight: (23 lbs.)
- Depth: (15 in.))
- Width: (14.0 in.)
- Height: (8.1 in.)
Accessories Available
- Portable USB drives
- KODAK Scan Station 730ex Plus Keyboard and Stand Accessory ($275 List)
- KODAK A3 Flatbed Accessory (11x17")
- KODAK A4 Flatbed Accessory (letter size)
Consumables Available
Feed Modules, Roller Cleaning Pads, Staticide Wipes
Warranty
90 day exchange warranty
Interfaces
- On rear panel: 4- USB 2.0 ports, one RJ45 10/100/1000 Base T Ethernet port, and one RJ11 telephone jack
- On bezel: one USB 2.0 port
