ScanSnap iX2500 Scanner Specifications
Product Name
Scansnap iX2500
Scanner Type
ADF (Automatic Document Feeder),Manual Feed, Duplex Scanning
Scanning modes
Color, grayscale, monochrome,
automatic (color / grayscale / monochrome detection)1
Image Sensor
CIS x 2 (contact image sensor) (front-1/back-1)
Light Source
3 Color LED (Red / Green / Blue)
Optical Resolution
600 dpi
Auto Mode(3)
Simplex or Duplex, 45 PPM
Normal mode
Color & Grayscale 150dpi, B&W 300dpi:
Simplex/Duplex 45/90 ppm/ipm
Better mode
Color 200dpi, B&W 400dpi :
Simplex/Duplex 45/90 ppm/ipm
Best mode
Color 300dpi, B&W 600dpi :
Simplex/Duplex 45/90 ppm/ipm
Excellent mode (3)
Color 600dpi, B&W 1,200dpi :
Simplex/Duplex 13/26 ppm/ipm
Normal Scan
Min. 2x2" Max: 8.5x14.17 length.
Manual Scan
Use of Carrier sheet permits the scanning of A3, B4, 11x17"
and Photo Carrier sheets as well as those listed above.
Long paper scanning (N/A in Excellent mode)
1,726mm-Simplex
863mm-Duplex (34")
Paper Weight (Thickness)
11 to 56 lbs, .76mm for embossed Credit Cards
Multi-feed Detection
Ultrasonic multi-feed detection sensor, overlap length detection
ADF Capacity(5)
Maximum 100 Sheets (letter size at 20lb.)
Optical Resolution
600 x 600 dpi
Wi-Fi Interface(7)
IEEE802.11a/b/g/n/ac/ax
Frequency band: 2.4 GHz / 5 GHz
Access Point Connect Mode
USB Interface
USB3.2 Gen1 /USB3.1 / USB3.0 / USB2.0 / USB1.1
(Connector Type: Type-C)

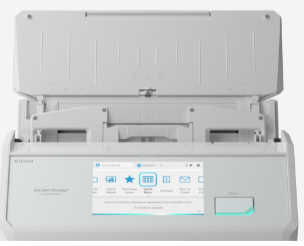

LCD Display
5.0 in. color TFT touch screen
Driver (2)
ScanSnap Home Software Driver (only)
• Windows: Does NOT support Twain/ISIS drivers
• Mac OS:Does NOT support Twain/ISIS drivers
Software
(Scanner Software freely available via download. Internet connection required.)
Windows:
ScanSnap Home
Nuance Power PDF Standard
ABBYY FineReader for Scansnap,
Mac OS:
ScanSnap Home
Nuance PDF Converter for Mac
ABBYY FineReader for Mac
Compatible Operating System for Hardware
Windows 10 (32/64 bit)/ Windows 11 (64 bit)
mac OS Catalina v10.15 or later
Only ScanSnap Home software works with Mac -Catalina iOS
iOS 16 or later/iPadOS 16 or later
Android 10 or later
System Requirements
See Brochure for System Requirements!
Power Requirement
AC 100 to 240V, 50 / 60 Hz
Power Consumption
17W or less, Standby: 1.4W or less
Operation Environment
Temperature: 41°F to 95°F (5°C to 35°C)
Relative humidity
20 to 80% (non-condensing)
Dimensions (W x D x H)(10)
11.5"W x 6.34"D x 6.26"H
trays open: 11.5"W x 18.78"D x 11.26"H
Environmental Compliance
ENERGY STAR® / ROHS
Limited Warranty
1 year Return to Depot Repair Limited Warranty.
Service Options
In-Warranty Upgrade - Advance Exchange
Post-Warranty - Advance Exchange Plus, Cleaning and Consumable Kit
Part Number
PA03860-B105 (WHT)
PA03860-B005 (BLK)
NOTES:
Please read the brochure and specs for all referenced notes.
