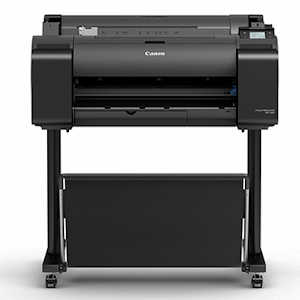

Canon GP-200
Large Format Printer
Specifications
Printer Type
6-Color 24-inch Printer
Number of Nozzles
Total: 15,360
6 channels @ 2,560 nozzles each
Nozzle Pitch
1200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2400×1200dpi (Max)
OS Compatibility
Windows® 7, 8.1, 10 (32/64bit)
Windows® Server 2008 R2, 2012, R2, 2016 (64bit), 2019
Macintosh OS X v10.12.6 or later
Standard Interface
High Speed USB
10/100/1000 Base-T/TX
Wireless LAN (IEEE 802.11 b/g/n)
Ink Droplet Size
Minimum 5 picoliter
Ink Capacity
130/300 ml per color
Color Set
Matte Black, Black, Cyan, Magenta, Yellow, Flourescent Pink
(Total 540 ml Intro set shipped with printer.)
Line Accuracy
+/- 0.1% or Less
Buffer/Ram
2 GB (Physical)
Media Width
Cut Sheet - 8"- 24"
Roll Feed - 8" - 24"
Media Thickness
0.07-0.8mm
Max. Media Roll Diameter (outer)
5.9" (150mm)
Borderless Printing Width (Roll Media Only)
8" - 24"
Paper-Feed Method
Front-Loading Roll Feed: One Roll, Front Output
Printer Languages
SGRaster, HPGL/2, HP-RTL, JPEG
Noise Level (Approx.)
Operation: 49 dB (A)
Standby: 35 dB (A) or less
Acoustic Power: 6.7 Bels
Physical Dimensions
42" x 39" x 35" (H x W x D) Basket Open
Weight
approx. 110 lbs (roll holder included, no inks, no print heads)
Power Source
AC 100-240V (50-60Hz)
Power Consumption
Maximum: 71W or less
Standby 2.0W or less
Power Off: 0.3W or less (Compliant with Executive Order)
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
User-replaceable items
Print Head (PF-07)
Maintenance Cartridge (MC-31)
Ink Tanks (PFI-120/PFI-320)
Cutter Blade (CT-08)
Software Included
Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)
Accessories
PosterArtist (Full Version), Roll Holder Set (RH2-28)
What's In The Box
imagePROGRAF GP-200,Catch Basket and Stand, 2/3 Inch Core Media Adapters, Tools and Screws, Print Head PF-07, Maint. Catridge, Intro Ink Tanks (6x90ml), Services terms, User Manual, Quick Setup Guide, User Software CD for Windows, PosterArtist Lite, User Registration Card, Warranty Sheet, Media Guide
Warranty
Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday. Contact ScanTastik for enhanced warranty service options.
PANTONE Calibrated
PANTONE PASTELS & NEONS GUIDE Coated: 85% when using Premium Semi-Glossy Paper 2 with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [High] (600dpi)
PANTONE FORMULA GUIDE Solid Coated: 94% when using Premium Semi-Glossy Paper 2 with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [High] 600 dpi
