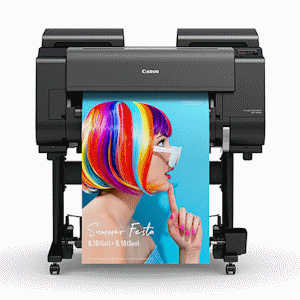

Canon GP-2000
24" Large Format Printer
Specifications
Printer Technology
FINE: Full-Photolithography Nozzle Engineering
Head Configuration
12-Channel Integrated Type
Nozzle Configuration
Total: 1,536x12 channels: 18,432
Min. Droplet Size
4 Picoliters per Color
Ink Info:
Type: Pigment-Based GP Ink Technology
PFI-2100 (160 ml)/PFI-2300 (330 ml)/ PFI-2700 (700 ml)
for all: FP, R, O, G, V, PBK, MBK, C, M, Y, GY
Ink Shipped with printer: 330ml MBK and 160ML All Others
Print Resolution (Up to)
2400×1200dpi (Max)
Colors
Fluorescent Pink, Red, Orange, Green, Violet, Photo
Black, Matte Black, Cyan, Magenta, Yellow, Gray
Ink Tank Shipped with Printer
11 Tanks:
MBK 330 ml Tank, All Others: 160ml Tanks
Hard Disk Capacity
500 GB
Display
4.3" Color LCD Touch-Screen
Size/Weight
(with basket open)
46.0" (H) x 44" (W) x 39" (D)
Approximately 225 lb.
Media Feed
Front-Loading Roll Feed: One Roll, Front Output
Media Width
8" - 24" (Cut-Sheet and Roll)
Max. Print Length
59' (Roll)
84" (cut-sheet)
Borderless Printing Widths
Custom roll width 6” - 24” with micro margin technology
Media Thickness
.07 mm - .8 mm
Media Core Sizes
2" or 3" Core (with Supplied Adaptor)
Maximum Media Roll
6.7" (170 mm)
Printable Margins
Roll Paper: Top: 3 mm; Bottom: 3 mm; Side: 3 mm
Borderless: Top: 0mm; Bottom: 0mm; Sides: 0mm
Cut-Sheet: Top: 3 mm; Bottom: 20 mm; Side: 3 mm
Fine Art Media
Photo Paper Pro Premium Matte, Fine Art Natural, German Etching by Hahnemühle, Fine Art Bright White, Artistic Satin Canvas, Artistic Matte Canvas, Water Resistant Matte Canvas, Fine Art Photo Rag by Hahnemühle, Fine Art Enhanced Velvet, Premium Fine Art Smooth,
Photographic/Glossy Paper
Photo Paper Pro Premium Platinum, Photo Paper Pro Luster, Satin Photo Paper, Glossy Photo Paper, Premium RC Photo Matte, Premium RC Photo Luster, Premium Glossy Photographic Paper 2, Premium Semi-Glossy Photographic Paper 2, Premium Metallic PhotoGloss.
Sign/Banner/Display
Back Print Backlit Film,Durable Matte Polypropylene Banner,Durable Backlit Film,Adhesive Matte Vinyl,Scrim Banner Vinyl, Water Resistant Matte Polypropylene, Water Resistant Adhesive Matte Vinyl, Water Resistant Matte Banner Vinyl, Premium Gift Wrapping Paper
Technical Documents /CAD/GIS
Economy Bond, Premium Bond, Coated, Matte Coated, Uncoated Bond
Standard Interface
Hi-Speed USB, 10/100/1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g/n)**
Printer Language
Swift Graphic Raster (SGRaster)
OS Compatibility
Windows® 7, 8.1, 10, 11
Windows® Server 2008 R2, 2012, R2, 2016, 2019 (64bit)
Macintosh OS X v10.12.6 or Later
Operating Environment
Temperature: 59°-86° F (15°-30° C)
Relative Humidity: 10-80% (No Condensation)
Power Source
AC 100-240V (50-60Hz)
Power Consumption
Max: 84 W or Less
Standby: 2.0 W or Less
Power Off: 0.3 W or Less
User-replaceable items
Print Head (PF-10)
Maintenance Cartridge (MC-30)
Ink Tanks
Rotary Cutter(CT-07)
Options Multifunction Roll System (RU-23),
Roll Holder Set (RH2-29)
Software Included
Professional Print & Layout, Quick Utility Toolbox, Accounting Manager, Device Management Console, Media Configuration Tool, PosterArtist Lite (PC only), PosterArtist (Available for purchase, PC only), Printer Driver Extra Kit (Free Layout and Advanced Preview), Direct Print Plus (PC only), Free Layout Plus (PC only)
Pantone Calibrated
PANTONE PASTELS & NEONS GUIDE Coated:
97% when using Photo Paper Pro Premium Platinum with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [Highest] (600dpi)
PANTONE FORMULA GUIDE Solid Coated:
99% when using Photo Paper Pro Premium Platinum with imagePROGRAF printer driver at [Poster/Photo (Fluorescent)] [Highest] 600 dpi
Warranty
Standard 1-year usually next-business day on-site repair with toll-free phone support Monday through Friday. Call ScanTastik for extended warranty options
