The core technologies of the imagePROGRAF TX Series printers include the ink system, (up to 700 ml catridges) the print head, and the mechanical platform. These printers satisfy the needs of the high-volume CAD and low-volume LED plotter markets with print quality, usability, security, and print speeds up to 190 D-sized prints per hour. The TX-4200 has these same features and will print up to 44 inches wide.

With an all-new GUI, the new SmartWorks MFP software brings an updated look and feel that enables the operator to easily execute large-format scanning and copying from the touchscreen AIO. With a simple to use interface and "scan-it-once" ability, this software allows for efficient batch scanning and helps to create high quality scanned images. You can scan to PDF, TIFF and JPEG file formats. SmartWorks MFP software is now more efficient than ever before.

• Scan-to-Multipage PDF
• Scan lengths of up to 26 ft for PDF and JPEG files, and up to 50 ft for TIFF files
• Ability to add custom presets with one-touch retrieval for those often-used settings
• Image enhancements for white point adjust, black point adjust, sharpen, mirror, and invert
• Fine detail scan feature
• Enhanced administrator rights
• Full integration with Canon Direct Print Plus software

The Z36 scanner incorporates a SingleSensor Technology Assembly, which helps provide consistent and better color accuracy with more detail in the shadows and highlights than a staggered CIS array scanner.

• Scanning speed of up to 13 inches per second in B/W, 3 ips in Color
• 1200 dpi Max optical, 9600 dpi interpolated
• Scan a document up to 1.0 mm thick
• Face up/front load/rear exit
• Straight paper path

The roll away flat TX Stacker provides the capability to neatly stack up to 100 Arch D plain paper prints. When not needed, the TX Stacker can be rolled away or folded for a smaller printer footprint.

The multi-positional Catch Basket can be freely adjusted to enable various output positions and options:

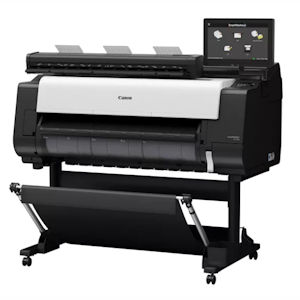

All the other printer features of the TX-3200 Z36 are the same as the TX-3200
