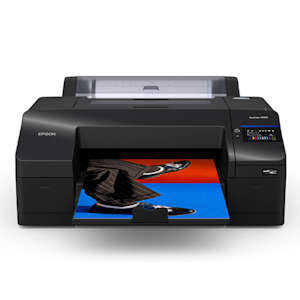

Epson SureColor P5370 Series
17" Wide Format Printer
Minimum cut-sheet size:
8"x10" (Less 3 mm margins)
Max Print roll: 17"x529"
Left/Right Margins
3 mm each side; 6 mm or 0.24" total
Top/Bottom Margins, Normal
3 mm/15mm
Top/Bottom Margins, Maximum Selected
3 mm each side
Paper Cassette
Mulitple sheets up to 0.35 mm (0.014") thick,
capacity varies by media, 100 sheet maximum on Luster paper
Front Top-loading
Single sheet up to 0.48 mm (0.019") thick
Front Media Path
Single sheet up to 1.50 mm (0.059") thick
Roll Paper
17" roll (not included), 2" or 3 "Core
Roll Thickness range
0.08 – 0.5 mm (0.02") thick
Media Core:
2" standard core or 3" Adapters
Top/Bottom Margin (mm)
Varies by media 15, 3, 20, 35 or 0 when using borderless cut
Left/Right Margins
3 mm each side; 0.24" total; or 0" at supported BorderFree® widths
BorderFree on 2" and 3" Cores
10", 13", 14", 16", 17"
BorderFree on 2" Core Only with Spacer
8", 11", 16.5"
Roll Cutting:
High-speed internal rotary cutter; auto or manual
Minimum auto cut length 5"
printable barcode tracking system for roll paper remaining.
Printing Technology:
Advanced MicroPiezo AMC 10-channel, drop-on-demand printhead with ink-repelling coating technology
Minimum Ink Droplet Size:
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology can produce up to three different
dot sizes per line
Maximum Print Resolution:
5760 x 1440 dpi
Print Speed: (averaged)
8.5" x 11" print: 1 min 28 sec
11" x 14" print: 2 min 31 sec
16" x 20" print: 4 min 11 sec
Nozzle Configuration:
Color and monochrome heads;180 nozzles x 10
Printer Language/Drivers
Epson ESC/P® raster photographic drivers standard
Operating Systems
Mac® OS X® 10.9.5 or later, Windows® 11,10, 8.1, 8 and 7
Temperature
Operating: 50˚ to 95˚F (10˚ to 35˚C)
Operating (Recommended): 65˚ to 75˚F (18˚ to 24˚C)
Storage: -4˚ to 104˚F (-20˚ to 40˚C)
Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)
Sound Level:
Operating: Approx 47 dB(A)
Dimensions:
Dimensions: Trays Closed: 34.0" x 30.2" x 16"
Ink type:
UltraChrome PRO10
200 ml Ink Cartridges
10 Colors: Photo Black, Cyan, Vivid Magenta, Yellow, Light Cyan, Light Vivid Magenta, Matte Black, Gray, Light Gray, Violet
Warranty
1-year Limited with toll-free phone support Monday through Friday. Extended warranties are available.
