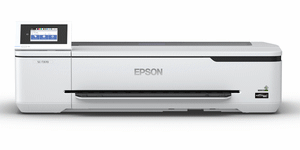

Epson SureColor T2170
Large Format Printer
Specifications
Printable Area and Accuracy:
Minimum Cut-sheet Size:
8.27 x 11 (1 sheet and ASF)
Minimum Paper Width:
Roll: 13"/Sheet: 8.27"
Maximum Printable Length:
Limited by application, OS and driver/RIP used
Sheet Loading:
Auto Sheet Feeder, up to 11" x 17"
Single Sheet, Top-loading:
Up to 24" wide
Left/Right Margins:
0 to 3 mm each (0.24" total)
Single Roll-to-Roll / Top-loading Roll:
Up to 24" wide
Media Core:
2” User-adjustable roll media adapters
Maximum Roll Diameter:
Up to 4.3"
Media Thickness:
Up to 8.6 mil
Roll Cutting:
High-speed internal rotary cutter; auto or manual6
Roll Paper Remaining:
The amount of remaining paper can be controlled from the control panel
Printing Technology:
PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
Minimum Ink Droplet Size:
4 picoliters; Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:
2400 x 1200 dpi
Print Speed:
A1/D-sized print: 43 seconds
Nozzle Configuration:
Color and monochrome heads; 800 nozzles x 4 channels
Operating Systems
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP8
Temperature
Operating: 50˚ to 95˚F (10˚ to 35˚C)
Operating (Recommended): 65˚ to 75˚F (18˚ to 24˚C)
Storage: -4˚ to 104˚F (-20˚ to 40˚C)
Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)
Sound Level:
Operating: Approx 49 dB(A);Sleep: Approx 32 dB(A)
Dimensions:
Without Stand: 38" x 20" x 9" (970 x 505 x 230 mm)
With Stand: 38" x 28" x 36" (970 x 696 x 913 mm)
Weight:
Without Stand: 60 lb (27 kg)
With Stand: 84 lb (38 kg)
Ink type:
UltraChrome XD2
Ink Cartridges
Black (50mL) T40V120
Cyan (26mL) T40V220
Magenta (26mL) T40V320
Yellow (26mL) T40V320
Black (80mL) T40W120
Cyan (50mL) T40W220
Magenta (50mL) T0W320
Yellow (50mL) T40W320
Warranty
Whole Unit Exchange for 1 year, with toll-free phone support Monday through Friday on this model. Extended warranties are available
