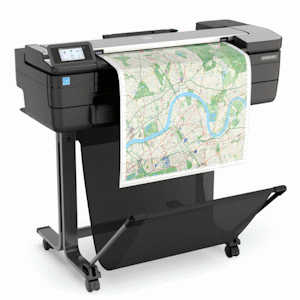

HP DesignJet T830
24 Inch Multifunction Printer Specifications
Print Speed
24-in: 26 sec/page on D, 81 D prints per hour
36-in: 25 sec/page on D, 82 D prints per hour
Print Resolution
Up to 2400 x 1200 optimized dpi
Technology
HP Thermal Inkjet
Margins
Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Sheet: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Ink Types
4 Colors: Dye-based (C, M, Y); pigment-based (K)
Page Yield
20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
Ink Droplet
6 picoliters (C, M, Y); 12.6 pl (K)

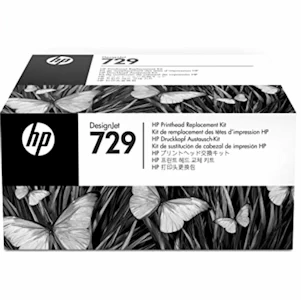

Printheads
1 (cyan, magenta, yellow, black)
Minimum line width
0.0008 in (0.02 mm)
Max optical density
8 L* min/2.10 D
Handling
Sheet feed, roll feed, manual sheet feeder, media bin, automatic horizontal cutter
Roll size
24-in: 11 to 24 in (279 to 610 mm)
36-in: 11 to 36 in (279 to 914 mm)
Sheet Size
Auto sheet feeder: 8.3 x 11 to 13 x 19 in
24-in manual feed: 8.3 x 11 to 24 x 74.7 in
36-in manual feed: 8.3 x 11 to 36 x 74.7 in
Standard sheets
Sheet feeder: A, B
24-in manual feed: A, B, C, D
36-in manual feed: A, B, C, D, E
Grammage
60 to 280 g/m² (roll/manual feed);
60 to 220 g/m² (sheet feeder)
Media Types
Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene)
Interfaces
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11
Print Languages
HP-GL/2, HP-RTL, TIFF, CALS G4, JPEG, URF
Drivers
HP-GL/2, HP-RTL drivers for Windows
Raster driver for macOS and Windows
Printer
24-in: 39.9 x 23.8 x 36.7 in (1013 x 605 x 932 mm)
36-in: 51.9 x 23.8 x 36.7 in (1317 x 605 x 932 mm)
Shipping
24-in: 43.2 x 23.4 x 45.5 in (1098 x 605 x 1155 mm)
36-in: 57.9 x 22.6 x 23.2 in (1470 x 575 x 590 mm)
Printer
24-in: 103 lb (47 kg)
36-in: 78 lb (35.4 kg)
Shipping
24-in: 144 lb
36-in: 123.5 lb (56 kg)
HP Software and Solutions
HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for macOS and Windows, HP Support Assistant
Recycled plastic in printer
30 percent
Operating temperature
41 to 104ºF (5 to 40ºC)
Operating humidity
20 to 80% RH
Operating altitude
Up to 9843 ft
Storage temperature
-13 to 131ºF (-25 to 55ºC)
Sound pressure
48 dB(A) (operating), 16 dB(A) (idle)
Sound power
6.5 B(A) (operating), 3.4 B(A) (idle)
Consumption
35 W (printing), 5.6 W (ready), 2.1 W (sleep), 0.2 W (standby)
Requirements
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
Safety
USA and Canada (CSA certified)
Electromagnetic
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)
Environmental
ENERGY STAR; EPEAT Silver, CE marking
Scan Speed
Up to 1.5 in/sec color, 200 dpi;
Up to 4.5 in/sec grayscale, 200 dpi
Scan Resolution
Up to 600 dpi;
Scan Formats
JPEG, PDF, TIFF
Scan Destinations
Scan to email, scan to cloud (through HP Smart app), network, USB, computer, mobile
Scan Thickness
0.03 in (0.8 mm)
What's In The Box
HP DesignJet T830 printer, printer stand, sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord, refeed preventers
Warranty
One-year limited hardware warranty. Extended Warranty Options available.
