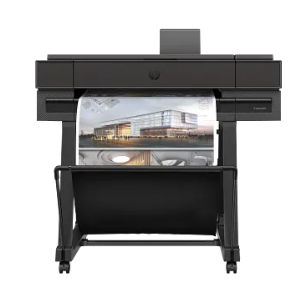

HP DesignJet T870
24 Inch Large Format Printer Specifications
Print Speed
24-in: 21 sec/page on D, 120 D prints per hour
Print Resolution
Up to 2400 x 1200 optimized dpi
Technology
HP Thermal Inkjet
Margins
Roll: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Sheet: 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Ink Types
4 Colors: Pigment-based (C, M, Y, K)
Page Yield
20 ml of ink yields 101 A1/D pages, taking into account maintenance routines
Ink Droplet
6 picoliters (C, M, Y); 12.6 pl (K)
Printheads
1 (cyan, magenta, yellow, black)
Printhead Nozzles
1376 per color
Minimum line width
0.0008 in (0.02 mm)
Max optical density
15 L* min/1.7 D
Handling
Roll feed, automatic sheet feeder(50 sheet capacity), media bin, automatic
horizontal cutter, sheet organizer(optional accessory
Roll size
24-in: 14.5 to 24 in
Sheet Size
Auto sheet feeder: 8.3 x 11 to 12 x 18 in
24-in manual feed: 8.3 x 11 to 24 x 66 in
Standard sheets
Auto sheet feeder: A, B
24-in manual feed: A, B, C, D
Media Weight Recommended
0.01 to 0.057 lb/ft² (roll/manual feed);
0.01 to 0.045 lb/ft² (auto sheet feeder
Interfaces
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
Print Languages
TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL,CALS G4
Drivers
Raster driver for macOS and Windows, HP-GL/2 driver for Windows, HP ClickDriver for Windows 11
Printer
24-in: 43.3 x 27.1 x 36.8 in
Shipping
51.7 x 22.44 x 25.19 in
HP Software and Solutions
HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS
One Click Printing
Yes, One-click multi-size printing
Operating temperature
41 to 104ºF (5 to 40ºC)
Operating humidity
20 to 80% RH
Operating altitude
Up to 9843 ft
Storage temperature
-13 to 131ºF (-25 to 55ºC)
Sound pressure
40 dB(A) (operating)
Sound power
5.8 B(A) (operating)
Consumption
35 W (printing), 5.5 W (ready), 2.5 W (sleep), 0.2 W (standby)
Requirements
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Safety
USA and Canada (CSA certified)
Electromagnetic
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES)
Environmental
ENERGY STAR; WEEE; ErP; EPEAT Gold
What's In The Box
HP DesignJet T870 printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Warranty
Two-year limited hardware warranty. Extended Warranty Options available.
