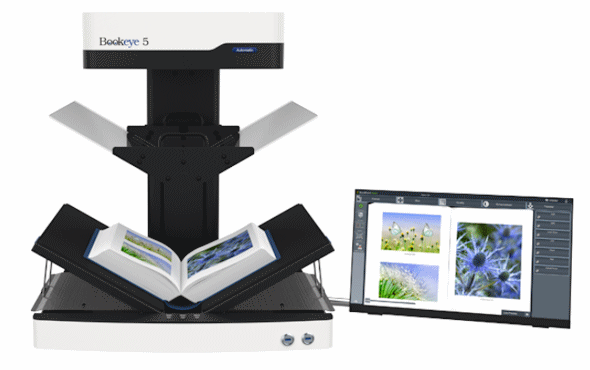

Bookeye 5 V2A Automatic Professional Book Scanner

with Automated Glass Plate

Bookeye V2A Automatic Professional Book Scanner

The motor-driven V-shaped glass plate, which ensures very gentle digitization of documents of all kinds. Works especially well with smaller, old discolored books that require "fingers" to hold the pages down. Protect the delicate book binding with the automated V-Glass plate.


Adjustable height for page turning and adjustable pressure settings for delicate documents
  • Motorized V-Shaped Glass Plate
  • V-Shaped Book Cradle
  • 600 dpi
  • 1.1 Sec. for A2+ Scan @ 200 dpi
  • 21" Touchscreen Monitor
  • Dual Line CCD Sensors
  • FREE ScanWizard scanning software
  • Automatic book fold correction
  • Automatic fingerprint removal
  • Automatic crop and deskew
  • Standalone with internal PC
  • Gigabit TCP/IP Network Interface

Bookeye 5 V2A
Automatic Book Scanner


Bundle Price
$24,990

Click here for more bundle options

Request a Quote

Bookeye 5 V2A Automatic Book Scanner

with Automated Glass Plate

The new, motor-driven V-shaped glass plate, which ensures very gentle digitization of books, magazines, posters, folders, or bound documents of all kinds. Automatically traversing at speeds from 19mm/sec up to 113mm/sec and a total stroke of 25cm, it gently flattens originals using the V-shaped cradle. The contact pressure can be individually adjusted, guaranteeing the gentlest handling of originals and distortion-free scans. Like all other Image Access Bookeye book scanners, the book cradle can also be used in flat mode.

The Bookeye 5 V2A Overhead Book Scanner is best used for:

  • Preserving books and sensitive historical documents
  • Scan newspapers, periodicals, catalogs and magazines
  • Scan and store images to network folders, USB or the cloud


Bookeye V2A Automatic Professional Book Scanner

The V-shaped glass plate is controlled via the ScanWizard´s extended user interface. The new control panel with animated function buttons allows, among other things, horizontal movement up and down, setting the speed or the position in which the glass plate remains after the finished scan job. It does not necessarily have to be at the top or bottom. Depending on requirements, the glass plate can be removed and refitted without tools and in two simple steps.

  • 21 inch full HD multitouch screen- allows the operator to control image quality and make many modifications on the fly. Pinch and swipe on the touchscreen the same way you would on a smartphone to zoom or move around in the image during the preview. Attach a second, optional screen to operate the scanner with the main touchscreen and preview images using the second screen.
  • Live Preview function- uses a second matrix camera to present a live video view of the document position before scanning.
  • Dark mode operation-new to the Bookeye 5 V2 book scanners, enhances scan quality through less light reflection and improves operation by reducing eye strain.
  • Laser-assisted book fold correction- effectively reduces annoying shadows and distortions in the middle of a scanned image of a book when operators are scanning thick bound documents, resulting in a perfectly flat scanned image.
Included Bookeye ScanWizard Software
Imaging Functions
  • Automatic Focus and Exposure Controls
  • Automatic Cropping with Page Masking
  • Automatic Border Recognition and Removal
  • Automatic Despeckle and Deskew Functions
  • Automatic Finger Removal
  • Automatic Book Channel Compensation
  • Automatic Document Rotation or Mirror
  • Automatic Page Splitting
  • Book Fan Removal (no side page edges showing)
  • Black Border Removal
  • Punch Hole Removal
  • Virtual Rescan with Real Time Image Editing
  • Scan up to 400 DPI upgradeable to 600 DPI
  • Anti-reflection Mode for glossy documents
  • Scan modes: Fast, High Quality and Anti-Reflective
  • Real Time Image Enhancement: Brightness, Contrast, Sharpness
  • Color Removal
  • Color (8-bit/24-bit), Grayscale, Bitonal, Halftone, Inverted
  • ICC Profiles are supported and can be embedded in file
  • Color Space: Native, RGB, Adobe RGB
  • OCR for single and multipage scanned documents.
  • Multiple file format outputs
21 Inch Touch Screen with Live Preview
21 inch live view

An integrated 21" Touchscreen allows the operator to control image quality and make real time edits before saving the image (Color, brightness, contrast, etc.) Scanned images can be output to USB, eMail, network, printer or on a mobile device like an iPad or Android tablet.

Small Footprint
v shape book cradle close-up

Thanks to its very small footprint and a weight of just 83 lbs., the book scanner fits comfortably on any desk or workspace. The integrated installation wizard prepares the Bookeye 5 for operation only a few minutes after unpacking. It can be integrated into the network, enabling scanning to an SMB drive, cloud storage, Scan2Pad, email, and other output targets.

The Bookeye 5 V2A Automatic is the perfect solution for demanding applications, highly efficient reproduction, and preservation projects of highly sensitive source material in libraries, archives, offices and more.

Standard Features & Functions
  • Dual Line CCD sensors
  • Scan documents up to 18" x 24.4"
  • 400 dpi resolution (upgradeable to 600 dpi )
  • 0.8 Sec. for A3+ Scan @ 150 dpi
  • LASER assisted Book fold correction (channel)
  • Gigabit TCP/IP Network Interface
  • Standalone device with its own Linux PC
  • Scan2USB -Walk up Scanning to any USB device via USB 3.0
  • Scan2Print -send to networked printers
  • Scan2Network -Output to network resources, SMB, FTP, Cloud
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, and more
  • LED lamps, no warm up, IR/UV free
  • Large color 21" touchscreen for scan QC
  • User interface configurable in many languages
  • Virus resistant Linux OS
  • OS independent, runs with Windows, Linux, Mac
  • ScanWizard uses any browser: IE, Safari, Chrome, Firefox
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface
  • USB 3.0 Port on front to scan to flash drives, etc.
  • Most Bundles include 12 months Full Coverage Warranty
  • A 2 year, Parts Only warranty is always included
