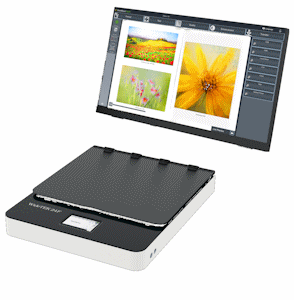

WideTEK 24F 18x24 Inch Flatbed Scanner

WideTEK 24F Inch flatbed Scanner
Scan Area 18" x 24"
Color CIS Cameras
Full Color 300/600 dpi scans in 4 seconds.
Scan up to 2" thick or remove the lid!

WideTEK
18" x 24"
Flatbed Scanner

  • Scans up to 18" x 24" area
  • Full Color 300 dpi scans in 4 seconds
  • CIS Line Sensor Cameras
  • Up to 1200 DPI output
  • Scratch resistant glass plate
  • Standalone device with its own internal PC
  • Scan to Network or USB
Base Bundle
$6,390
free shipping
More purchase options

Compare to similar models

WideTEK 24F Flatbed Scanner

Professional Color Flatbed Scanner

WideTEK® 24F is the newest addition to the Image Access family of large format flatbed scanners. Incorporating the latest camera technology and illumination techniques, it is not only extremely fast but also scans highly accurately at resolutions up to 1200 dpi but is still an affordable solution.

By far the fastest CIS flatbed scanner on the market, WideTEK 24F completes a full 600dpi color scan of the entire area in less than 4 seconds. During those few seconds, the image is compressed and sent over the network, all while the competitors product is still working on its 200dpi scan. The 1200dpi resolution provides details of the scanned document not even visible to the human eye.

WideTEK 24F features a solid glass plate protecting the scanner from being exposed to dirt and dust, wet ink or paint, or any other objects. Because the glass top extends from edge to edge, it allows scanning of oversized objects and supports thicker objects with the adjustable height of the lid. You can pull up the lid and readjust the stops to a higher position. This way you can scan a canvas or any other thicker object of up to five cm or two inches. The lid can easily be removed completely. The scanning portion of the glass is practically invisible due to its anti-reflection coating. Cleaning is a snap and special treatment for high scratch resistance ensures a long lifetime of the scanning glass.

True Color Space

The color space of the WideTEK 24F is much wider than SRGB and the output can also be set to Adobe RGB or native RGB. Our unique online ICC profiling eliminates the last remaining imperfections.

The virtual rescan function eliminates the need to physically rescan documents. Almost all scanning parameters can be changed on the fly and the results can be seen instantly on the built-in touchscreen or on the optional external monitor.

Scan Nearly Anything

The WideTEK® 24F can scan nearly anything: from business cards to diagrams, books, newspapers, maps, construction drawings, bound documents and more. The new scratch resistant, non-reflective borderless glass platen prevents bent edges on source documents.

7" Touch Screen
7 inch touchscreen close-up

The 7 inch color WVGA (wide VGA) touchscreen provides access to all functions directly from the scanner. It is very easy to access and is operator-friendly because it is located right at the center of the scanner, exactly where the operator stands or sits.

  • PC and touchscreen inside, no hidden cost
  • Fast Gigabit network connection
  • True standalone solution

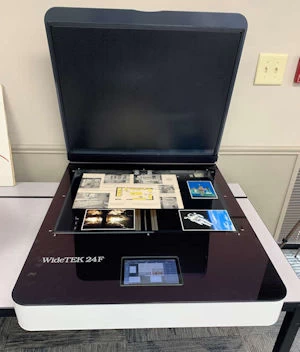

Stand Alone Scan Station
Flatbed scan station

The scanner is 6" high, 29" wide, and 36" deep. You will need a large, sturdy table to work with. The scanner weighs 62 lbs. If you have to turn the flatbed sideways to fit on a table, you will need the monitor to be able to run the scanner as the 7" touch screen will be hard to see!

Key Features
  • Scans 18" x 24"
  • Fastest color scanning at 4 seconds @ 600 dpi
  • 1200 x 1200 dpi scanner resolution
  • Automatic crop and deskew
  • Real time display of scanned images, modify images without rescanning
  • Standalone device with its own Linux PC
  • Scan2USB -- Walk up Scanning to any USB device via USB 3.0
  • Scan2Network -- Output to network resources, SMB, FTP
  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more
  • Supports SRGB, Adobe RGB, native color spaces
Other Features
  • LED lamps, no warm up, IR/UV free
  • 7" color WVGA touchscreen for simplified operation
  • User interface configurable in many languages
  • Virus resistant Linux OS
  • OS independent, runs with Windows 7, 8, 10, Linux, Mac
  • ScanWizard uses any browser: IE, Safari, Chrome, Firefox
  • Remote maintenance and troubleshooting
  • Firmware updates via web interface
  • Dust-free camera technology
  • Exceeds FADGI *** guidelines, Metamorfoze light, ISO 19264-1
  • Scratch resistant glass plate
Options
  • Batch Scan Wizard -- Software option for high volume scanning and indexing
  • Scan2OCR -- Software option to scan and OCR process in a single step
  • Foot Switch -- Hands-free hardware option for batch scanning
  • TWAIN Interface -- Software interface option
  • Full Coverage Warranty -- Up to 5 years subscription for full coverage warranty package and free spare parts
