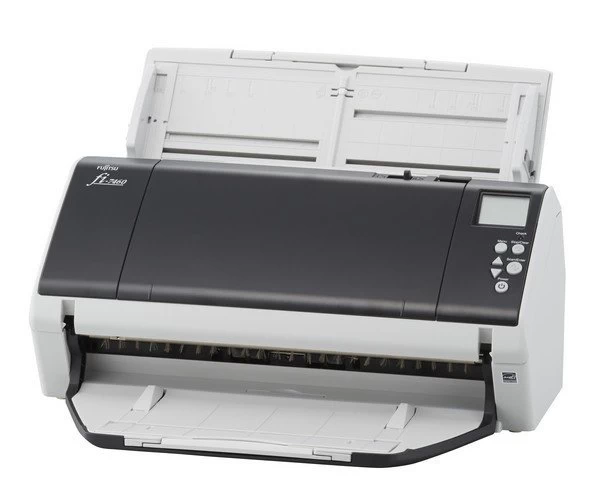

Ricoh fi-7460 scanner
Specifications
Image Sensor Type
Charge coupled device (CCD) image sensor (1 front,1 back)
Light Source
White LED Array x 4 (front s, back x2)
Output Resolution (dpi)
Monochrome, Grayscale and Color
50 – 600
(adjustable by 1 dpi increments)
1200 dpi (driver)
Optical Resolution (dpi)
600 dpi
Output Format
Color: 24 bit, Grayscale: 8 bit,
Monochrome: 1 bit
Internal Video Processing
4,096 levels (12-bit)
ADF capacity
(paper chute)
100 Sheets (letter, 20 lb.)
ADF minimum
2 in. x 2.72 in.
ADF maximum
12 in. x 17 in.
Long Document
12 in. x 220 in.
Interface
USB 3.0 / USB 2.0 / USB 1.1 (backward compatible)
Letter/Landscape Mode
Simplex/Duplex
Monochrome, Grayscale & Color @ 200/300 dpi
60 ppm/120 ipm
Letter/Portrait Mode
Simplex/Duplex
Monochrome, Grayscale & Color @ 200/300 dpi
50 ppm/100 ipm
Power requirements (auto-switching)
AC 100 - 240V, 50 / 60 Hz
Power consumption
Operating:36 W or less
Sleep mode: 1.4 W or less
Operating environment
Temperature:41°F - 95°F (5°C - 35°C)
Relative Humidity
20% - 80% (non-condensing)
Dimensions (HxWxD)
6.61" x 15" x 8.23" (trays closed)
Reliability Specifications
Daily duty cycle
Up to 9,000 documents per day
Limited Warranty
3 months on-site
Options
Post Imprinter (Back-side)
Image processing functions
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen, Emphasis, Halftone, Dropout color (None /Red /Green /Blue /White / Saturation /Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold
In box Software / Drivers
(on DVD) *software can be downloaded from website designated in the Setup DVD
PaperStream IP (TWAIN/ISIS), Software Operation Panel, Error Recovery Guide, PaperStream Capture, ScanSnap Manager for fi Series, 2D Barcode for PaperStream, Scan to Microsoft SharePoint, ABBYY FineReader for ScanSnap, Scanner Central Admin Agent
Operating System Support
Microsoft® Windows Vista,7, 8,10
Microsoft® Windows Server 2008,2012
Part Number
fi-7460 – PA03710-B055
PC Minimum Specifications
Requires i5 2.5 MHz Processor, 4 GB RAM memory or above for optimum throughput
