Fujitsu N7100 Network
document scanner

Fujitsu N7100 Color, duplex, network scanner

25 pages per minute/ 50 images per minute (duplex)
with 50 Page Automatic Document Feeder
Ethernet Port for Network access
10/100/1000 Mbps Compatible
Scan to e-mail, folder/FTP, network fax or printer

List Price
$1895.00

This model has been discontinued by Fujitsu.
Consider the N7100e model.

Features
More Features
Specifications

A Network Document Scanner to maximize business efficiency

With the functionality of many devices, yet the simplicity of one, the N7100 network scanner contains the qualities organizations of all sizes desire to improve business processes.

scansnap N7100 network scanner

Ideal for Small and Medium Business

Space saving design
Multifunction functionality to reduce hardware costs
Local user accounts
Quiet operation
Loaded with intelligent scanning features
Outstanding price/performance

General office functionality

Fast scanning speeds of 25 pages per minute and true double-sided speeds of 50 images per minute in color, grayscale or black & white @ 300 dpi
50 page document feeder

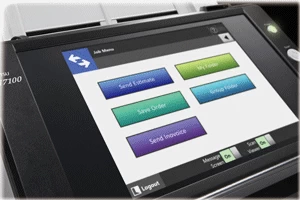

Large 8.4” touch screen high resolution (1024 x 768) display
Scan to e-mail, folder/FTP, network fax or printer or Microsoft SharePoint Server Enterprise features
Central Administration Server software
Job Menu’s based on individual user login to control scanning settings and destination(s)
High security to assist with compliance and regulation
SDK and optional third-party applications for integration with line of business systems

Easy Stand-alone Network Operation with Large Display

Large size screen with integrated on-screen keyboard and PC functions are equipped in this compact network scanner. It can be used in the office or a teller window where space is limited. The user can perform scanning, data saving and transmission without the need to operate from a computer.

Quick scanning speed that supports plastic cards

Scanning speed is consistent at 25 pages per minute (ppm) even when scanning full A4 color, double-sided, at 300dpi. N7100 is equipped with accurate and stable feeding mechanisms that support scanning from thin paper to thick paper, and plastic card. Plastic ID card and application forms can be scanned together easily at a teller window of banks or hospitals.

Less waiting time to achieve stress free scanning

In order for the user not to feel any stress, the image processing after scanning is quick thanks to the enhanced CPU/memory. The time from the start of scanning to the finish including image processing (when the preview of the last scanned page appears) is 50% shorter than the previous model. For regular scanning routines, only one touch of the scan button is necessary which greatly improves the productivity.

High security assuming to be shared by multiple users

The N7100 achieves high security on the premise that it is shared by multiple users. Not only verification before scanning, but also encryption while processing and data deletion after scanning are performed automatically. Users can use the network scanner with peace of mind.

Login authentication strictly controls what people can do with the scanner.
Scanned data can be output as password-protected PDF files.
Advanced security measures guard scanned data from prying eyes.
Encryption: N7100 encrypts and temporarily stores scanned data locally during processing for e-mails, faxes, printing and network storage.
Scanned data deletion: After scanned data has been e-mailed, faxed, printed out or saved to a network folder N7100 automatically deletes the temporarily stored data from its internal memory. Even if an error results in the data remaining in the memory, it is then automatically erased the next time the scanner is started up.
Secure Initialize: When N7100 is initialized, free regions of the internal memory can be overwritten with completely random, meaningless data. As an added security measure, a new cipher key is generated after the user information is deleted. All of this ensures that no trace of old user data can be retrieved from open memory.

Perfect Fit Customized to Your Unique Needs

Administrators can customize the touch panel job menu and scan settings of N7100 to suit the work of a specific user or user group registered to the scanner. The user’s application can be integrated to the scanner as add-in software using the exclusive SDK (for Windows). N7100 comes with an open USB port to connect a keyboard or other USB devices(2) (except USB memory). N7100 can be customized to be a terminal exclusively for your operation.

Automated functions take the work out of scanning

Advanced automated functions ensure N7100 digitizes your documents with remarkable precision and efficiency. Produce beautiful scans quickly with barely the need to lift a finger.

Auto Orientation
Auto Deskew
Blank Page Removal
Color Detection
Paper Size Detection
Marker Index: detects words marked with a highlighter and embeds them as keywords in PDF files.

Connects with a variety of server types

N7100 easily satisfies the digitizing needs of small office networks which use a file server and e-mail server. It is also right at home with more complex LDAP/LDAPS authentication-based networks, integrated with Microsoft Exchange Server, SharePoint and other application hubs.

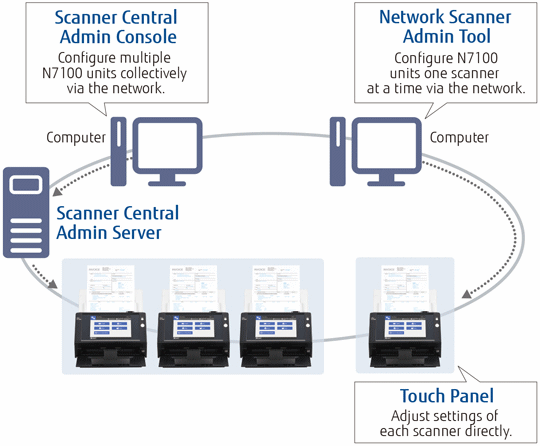

Set up and manage multiple N7100 scanners at one time

N7100 offers administration functions that allow you to individually or collectively setup and manage a vast network of N7100 units with ease from a single console.

Network Scanner Admin Tool: The Tool function allows you to adjust running environment settings one scanner at a time.

n7100 Scanner Specifications

Resolution

150, 200, 300, 600 dpi

Image Adjustments

Brightness, contrast, dropout color,
sharpness, background removal

Color

24-bit single pass color, auto color detection

Scanning speeds

Color:Simplex: 25 ppm (200dpi), Duplex: 50 ipm (200dpi)

Document feeding mode

Automatic document feeder (ADF)

ADF capacity

50 Sheets (letter/A4, 20 lb.)

ADF minimum

(A8) (2.1 in. x 2.9 in.)

ADF maximum

(Legal) (8.5 in x 14 in)

Network Authentication

User: Active Directory or Open LDAP (for Solaris or Linux), Standalone authentication.
Folder: Active Directory or Open LDAP (for Solaris or Linux)

Network Protocals

TCP/IP (IPv4 / IPv6 7), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP

Output methods

TIFF, MTIFF, JPEG, PDF, searchable PDF’s (English)

Interface

Ethernet RJ45 10/100/1000 base T

Software Driver Support

All software loaded on system (embedded)

Physical Specifications

Power

100-240 VAC, 50/60 Hz

Power Consumption

50 W or less, Energy saving mode: 15 W or less

Operating environment

Temperature: 41° to 95° F (5° to 35° C)

Relative humidity

20% to 80% (non-condensing)

Dimensions (HxWxD)

11.8 in. (W) x 8.9 in. (D) x 6.8 in. (H)

Weight

13.23 lbs

Environmental compatibility

RoHs

Automatic image processing

Auto deskew, auto orientation, auto page size detection and blank page detection, color detection

Security

LDAP, LDAPS, FTPS, HTTPS

Touch panel;Screen size

8.4 in. XGA (1024 x 768 pixel) TFT color monitor

Type

Analog resistive touch display

Keyboard

SOFTWARE keyboard (on screen)

Limited Warranty

One year DEPOT Limited Warranty. Advance Exchange, Basic, and Depot programs also available; Restrictions apply.

Service Options

Post-Warranty — Advance Exchange Plus, Basic Plus, and ScanCare programs also available; restrictions apply. Consumables — ScanAid™ kits

Inbox Contents

Network cable, power cord and Getting Started Guide

Functionality

Scan to network folder, fax/print/ftp and email, scan to Sharepoint, Job buttons, Central Administrative Console.

Features

Ultrasonic double feed detection, marker indexing via highlight pen. Searchable and password protected PDF, long document scanning

Part Number

PA03706-B205

Download the spec sheet in PDF here
